2 Inch Toilet Cistern Repair Kit Side Button G1/2 Fill Valve Set

    PRODUCT DESCRIPTION

Product Name: 2 Inch Toilet Cistern Repair Kit Side Push Button | G1/2 Fill Valve & Single Flush Valve Set for Two Piece Toilet

Not sure if this kit fits your market?
👉 Read our guide: How to Choose the Right Toilet Cistern Repair Kit for the Brazil Market

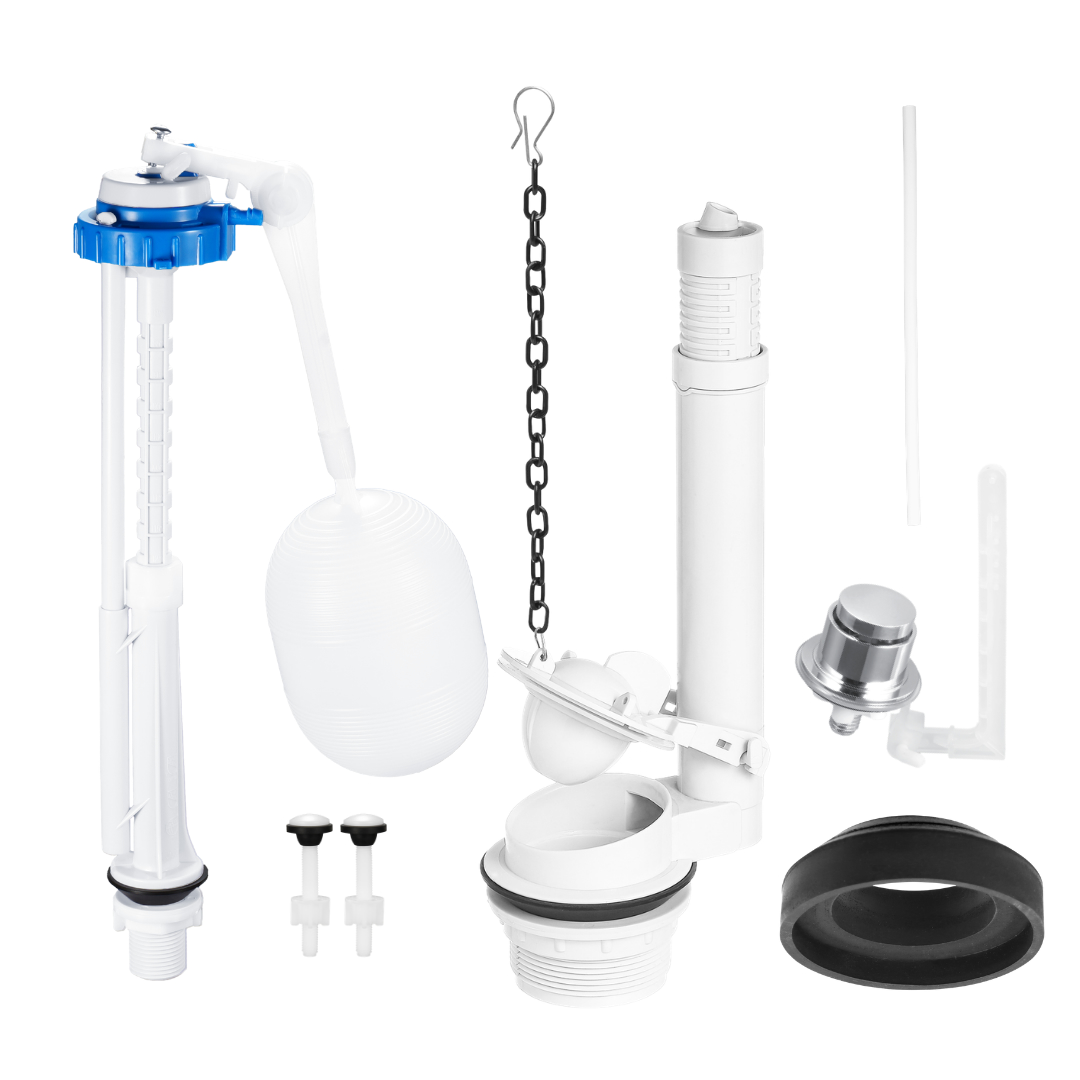

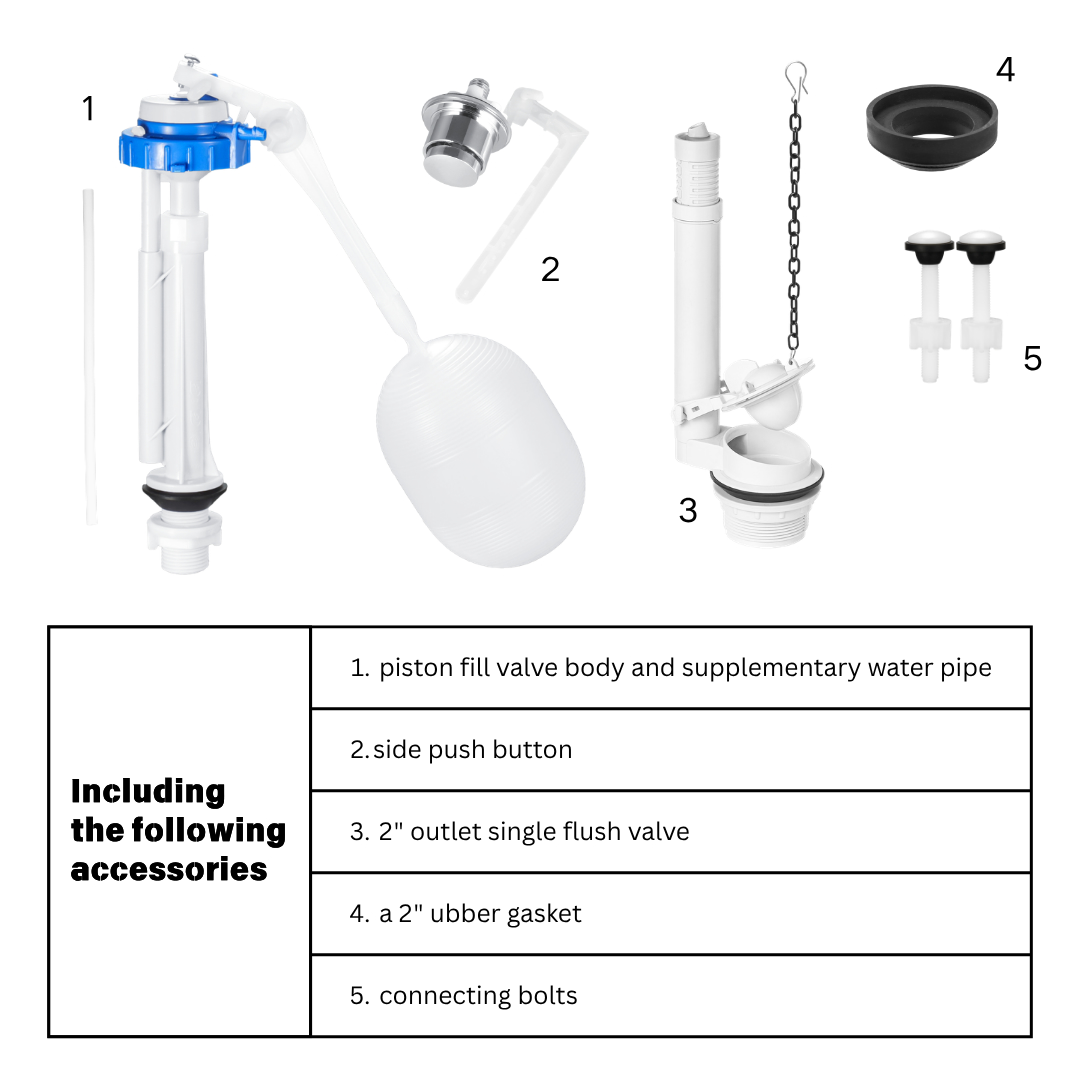

This toilet cistern repair kit is designed as a complete solution for replacing internal components of a two-piece toilet tank. The set includes a G1/2 fill valve, a 2-inch single flush valve, and a side push button, making it suitable for most standard toilet cistern systems in the replacement market. As a professional toilet tank parts manufacturer, we developed this combination based on hot-selling configurations in South America, helping distributors and e-commerce sellers quickly match market demand.

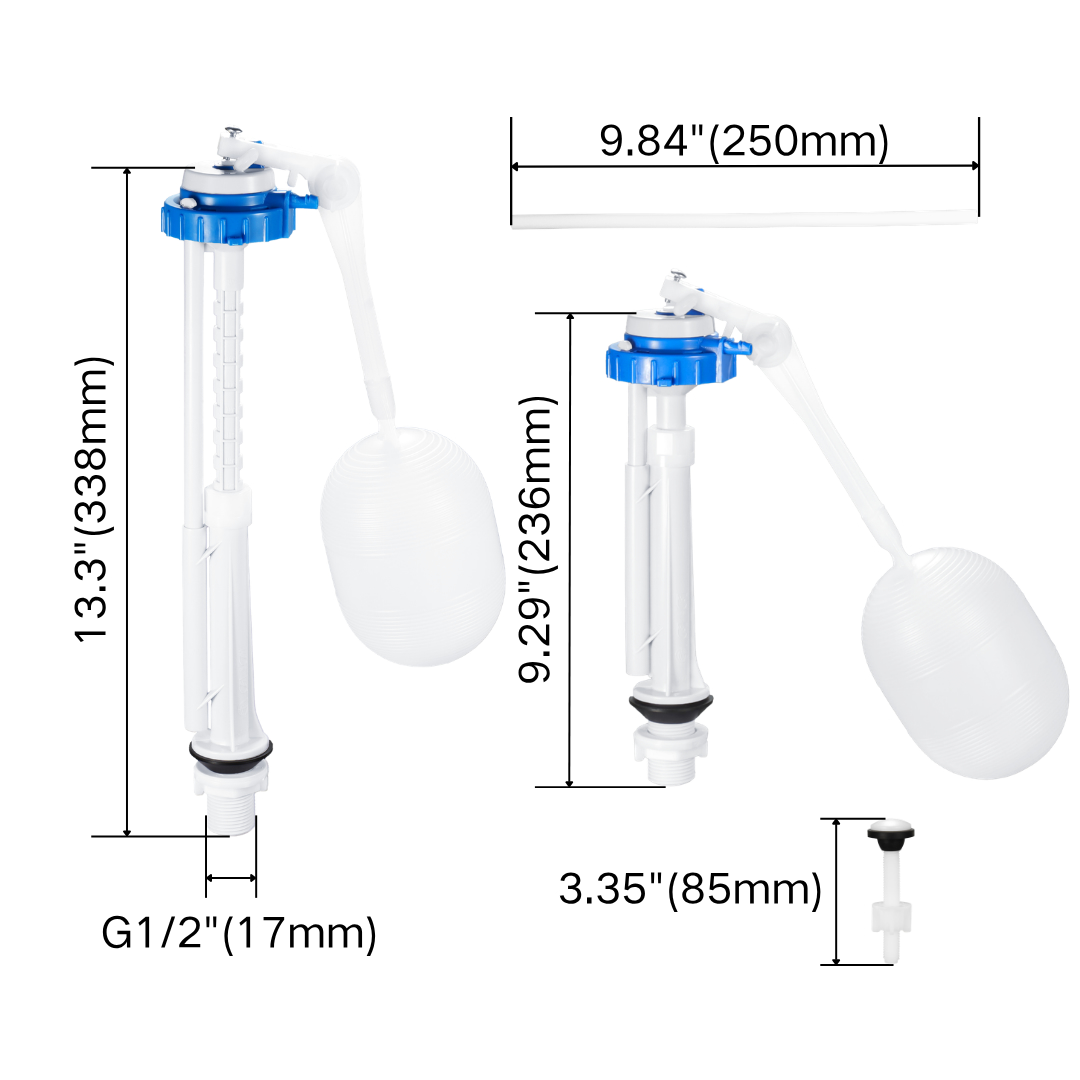

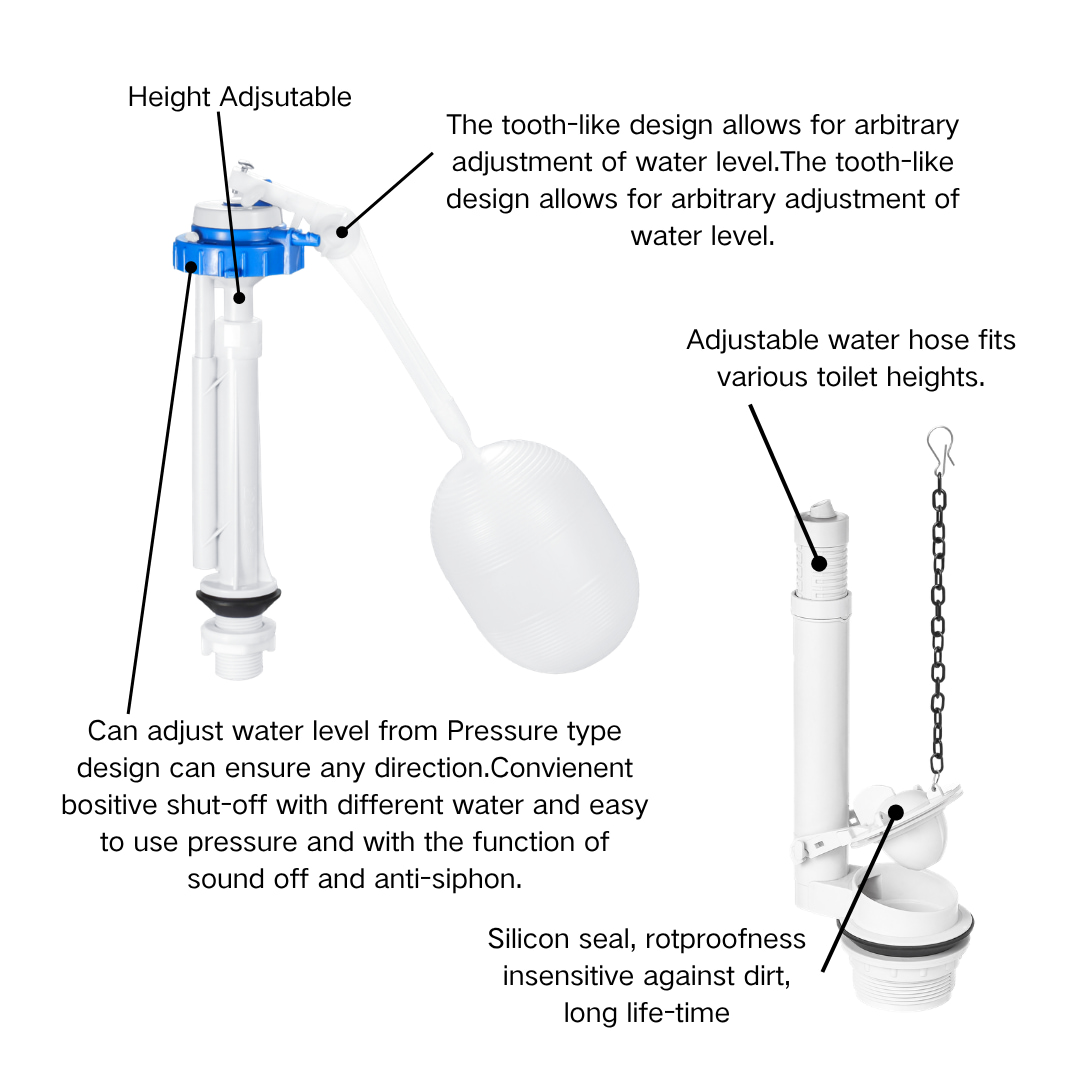

The fill valve features an adjustable height structure and a G1/2 inlet, ensuring compatibility with different toilet tank sizes and installation conditions. Its pressure-type design allows smooth shut-off and stable water control, reducing noise during refilling. This makes it an ideal choice for customers looking for a reliable toilet cistern fill valve supplier with consistent product quality.

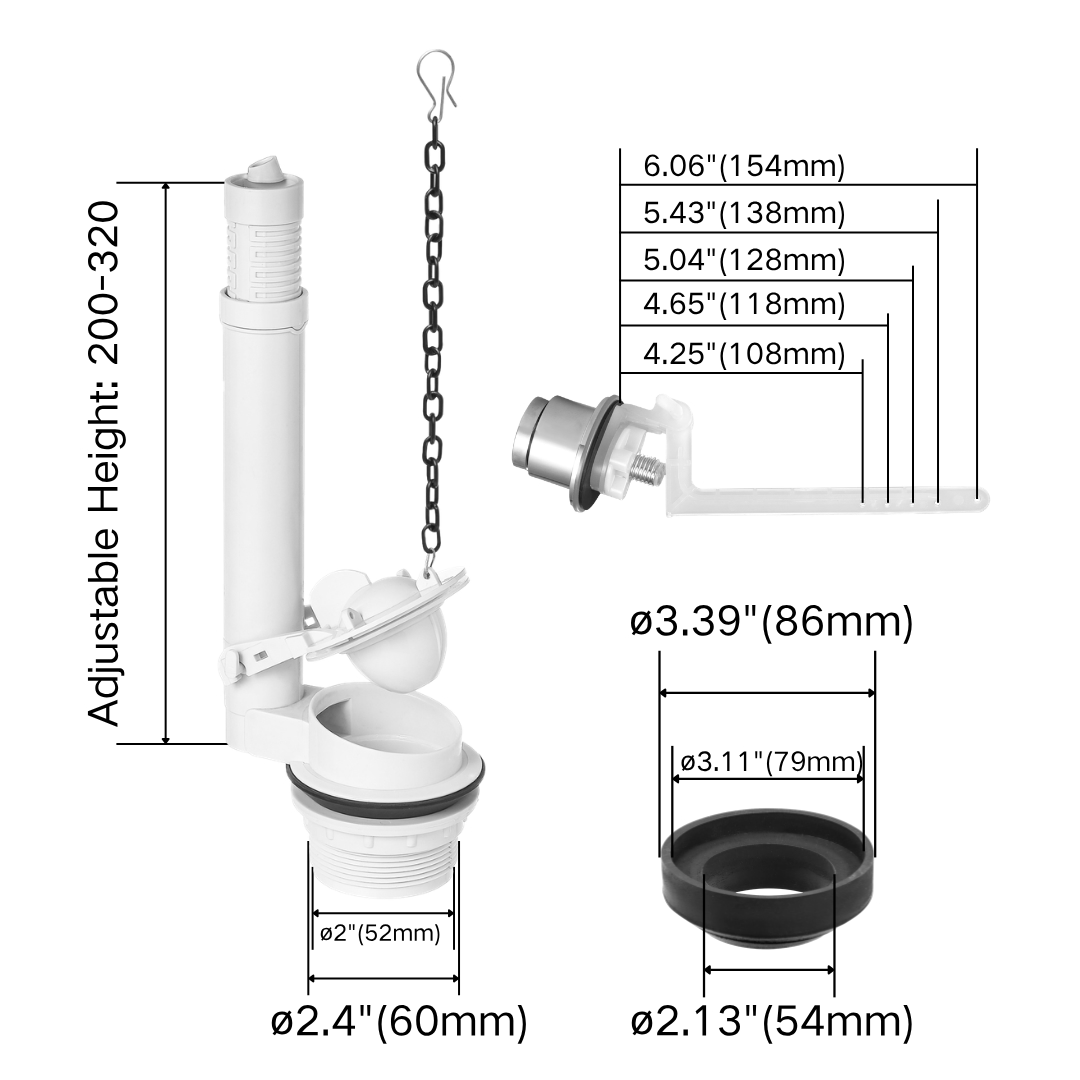

The 2-inch flush valve is built with an adjustable overflow pipe, allowing flexible height adjustment from 200mm to 320mm. Combined with a strong sealing system and durable gasket, it provides long-lasting leak-proof performance. This configuration is widely used in toilet cistern flush valve factory production lines, ensuring stability and durability for large-volume orders.

The side push button is designed to fit different tank thicknesses with adjustable rods, making installation simple and efficient. This feature is especially important for the replacement market, where compatibility is key. As a trusted toilet tank fittings supplier, we focus on making installation easier for end users and reducing after-sales issues for our clients.

This toilet cistern internal parts kit is ideal for wholesalers, distributors, and online sellers looking for a cost-effective and universal solution. As a direct toilet tank repair kit factory, we offer stable supply, customizable packaging, and OEM services to support your brand development in different markets, especially in Brazil and other South American regions.

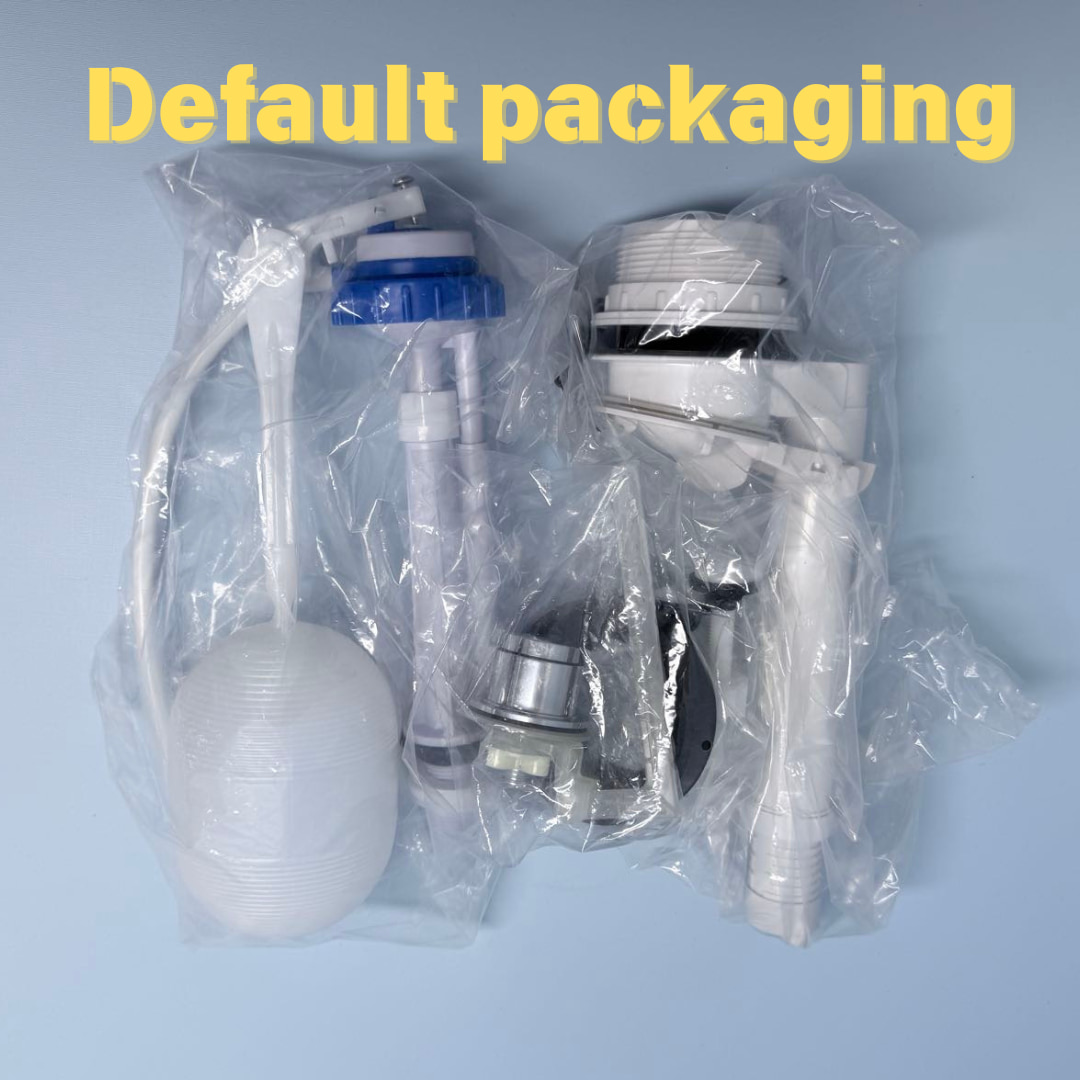

The default packaging is PE bag packing, suitable for bulk orders and cost-efficient shipping.

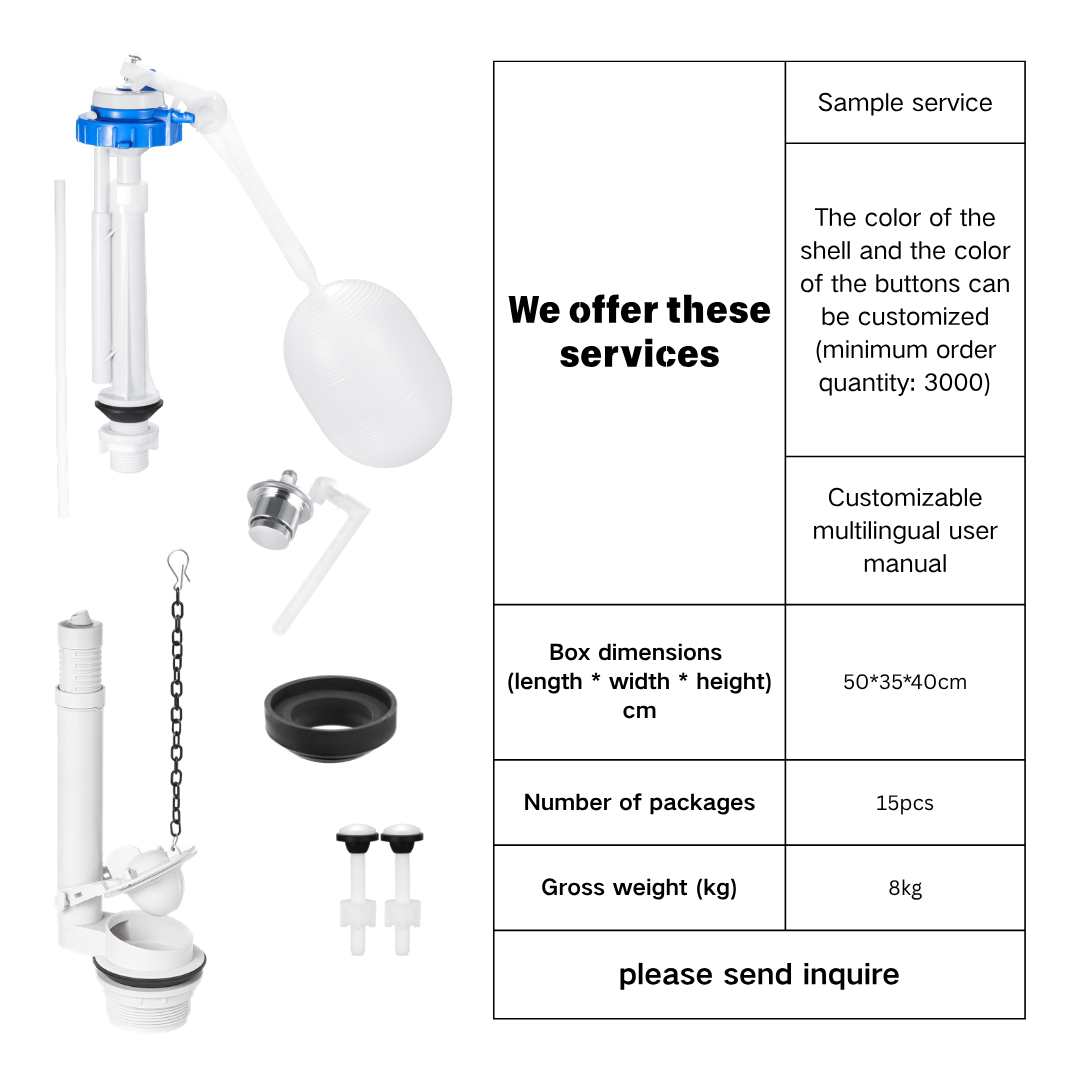

For customers targeting retail or e-commerce markets, neutral box packaging is available to provide a cleaner and more professional presentation. Custom packaging solutions are also supported for branding and market positioning.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

What are the dimensions and specifications of the water inlet of this product?

G3/8'' POM thread, G3/8'' brass thread , G1/2'' POM thread , G1/2'' brass thread.

How to choose the water inlet size of the toilet fill valve?

Europe and Africa use G3/8 ", the Middle East uses G3/8 "and G1/2", Asia and South America use G1/2.

What is the water pressure range for this product?

The applicable water pressure range for this bottom entry toilet fill valve is 4-175p.s.i.g, or 0.3-12bar, or 0.03Mpa-1.2Mpa.

What should be considered when purchasing this product?

First, consider whether the flush valve is intended for a two-piece or one-piece toilet. The base design of the flush valve differs based on the application: two-piece toilets use a nut to secure the flush valve, while one-piece toilets use a steel hook for fixation.

Second, choose between an adjustable overflow pipe and a fixed overflow pipe. The length of the overflow pipe is determined by the working water level of the tank. If the working water level is uncertain, it is recommended to select an adjustable overflow pipe. The fixed overflow pipe has a default length of 200mm, which is suitable for most toilet tanks.

What is the function of the overflow pipe?

The overflow pipe serves two functions:

First, When the water seal in the toilet bowl is insufficient, the refill tube of the inlet valve directs water through the overflow pipe to replenish the bowl. This helps form a water seal in the U-shaped trap, preventing sewer odors from escaping and contaminating the bathroom.

Second, In the event of a severe malfunction or rupture of the inlet valve that prevents it from stopping the water flow, the overflow pipe allows excess water in the tank to drain out. This prevents the tank from overflowing, which could otherwise flood the bathroom or even adjacent rooms, causing significant damage.

What is the drainage rate of this product?

The standard drainage rate of the toilet dual flush valve ranges from 2.4 to 3 liters per second.

    WHY CHOOSE US?

1.Market Experience

Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.

2.Quality Guarantee

We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.

3.R&D Ability

We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.

4.Customer Support

We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
